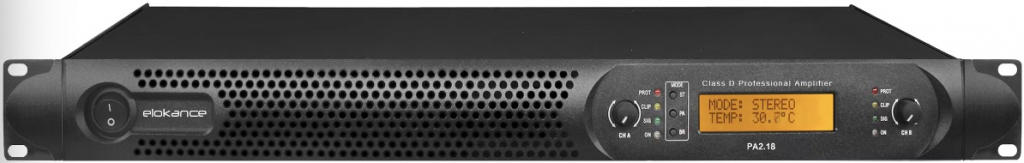

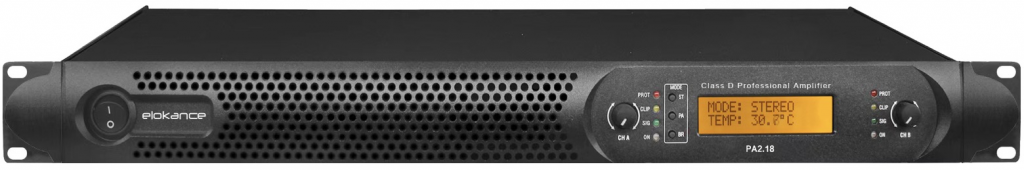

PA-line双通道数字功率放大器
| 型号： | PA2.6 | PA2.10 | PA2.18 | PA2.24 | PA2.30 |
| 额定功率RMS：(8Ω) | 2×600W | 2×1100W | 2×1800W | 2×2400W | 2×3000W |
| 额定功率RMS：(4Ω)： | 2×900W | 2×1700W | 2×3240W | 2×4000W | 2×5700W |
| 额定功率RMS：(2Ω)： | 2×1300W | 2×1900W | 2×4140W | 2×5500W | 2×6900W |
| 桥接功率RMS：(8Ω)： | 1800W | 3400W | 6000W | 8000W | 10000W |
| 桥接功率RMS：(4Ω)： | 2070W | 3800W | 8260W | 11000W | 13700W |
| 频响： | 20Hz-20kHz, ±0.5dB | 20Hz-20kHz, ±0.5dB | 20Hz-20kHz, ±0.5dB | 20Hz-20kHz, ±0.5dB | 20Hz-20kHz, ±0.5dB |
| 输入灵敏度: | 0.775V | 0.775V | 0.775V | 0.775V | 0.775V |
| 信噪比： | ≥105dB | ≥105dB | ≥105dB | ≥105dB | ≥105dB |
| 失真度（THD）： | ≤0.03% | ≤0.03% | ≤0.03% | ≤0.03% | ≤0.03% |
| 阻尼系数（f=1KHz 8Ω）： | ＞240 | ＞240 | ＞240 | ＞240 | ＞240 |
| 转换速率： | 15V/uS | 15V/uS | 15V/uS | 15V/uS | 15V/uS |
| 毛重： | 5.5Kg | 7kg | 9.5kg | 10kg | 10.5kg |
| 机箱厚度： | 1U | 1U | 1U | 1U | 1U |
| 尺寸(W x D x H)： | 483mm x 330mm x 44mm | 483mm x 330mm x 44mm | 483mm x 330mm x 44mm | 483mm x 330mm x 44mm | 483mm x 330mm x 44mm |
| 净重(kg)： | 5.0kg | 6.5kg | 9.0kg | 9.5kg | 10kg |

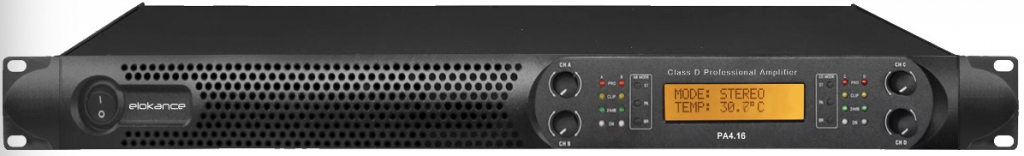

PA-line四通道数字功率放大器
| 型号： | PA4.6 | PA4.10 | PA4.16 | PA4.18 |
| 额定功率RMS：(8Ω) | 4×600W | 4×1100W | 4×1600W | 4×1800W |
| 额定功率RMS：(4Ω)： | 4×900W | 4×1700W | 4×2400W | 4×2600W |
| 额定功率RMS：(2Ω)： | 4×1030W | 4×1900W | 4×3200W | 4×3800W |
| 桥接功率RMS：(8Ω)： | 1800W×2 | 3400W×2 | 4800W×2 | 5000W×2 |
| 桥接功率RMS：(4Ω)： | 2070W×2 | 3800W×2 | 6400W×2 | 7600W×2 |
| 频响： | 20Hz-20kHz, ±0.5dB | 20Hz-20kHz, ±0.5dB | 20Hz-20kHz, ±0.5dB | 20Hz-20kHz, ±0.5dB |
| 输入灵敏度: | 0.775V | 0.775V | 0.775V | 0.775V |
| 信噪比： | ≥105dB | ≥105dB | ≥105dB | ≥105dB |
| 失真度（THD）： | ≤0.03% | ≤0.03% | ≤0.03% | ≤0.03% |
| 阻尼系数（f=1KHz 8Ω）： | ＞240 | ＞240 | ＞240 | ＞240 |
| 转换速率： | 15V/uS | 15V/uS | 15V/uS | 15V/uS |
| 毛重： | 12Kg | 12.5kg | 13kg | 13.5kg |
| 机箱厚度： | 1U | 1U | 1U | 1U |
| 尺寸(W x D x H)： | 483mm x 330mm x 44mm | 483mm x 420mm x 44mm | 483mm x 420mm x 44mm | 483mm x 420mm x 44mm |
| 净重(kg)： | 11.5kg | 12kg | 12.5kg | 13kg |
